Finite Element Analysis

Further Examples of Finite Element Analysis

Damor Engineering Ltd provides a full finite element service for stress analysis and heat transfer, for both linear and non-linear applications. Results can be provided graphically and in tables of raw data.

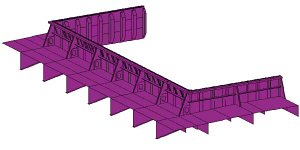

Finite Element Analysis 1 Coaming

Our standard FEA service includes the preparation of a full report which explains the methodology used for the modelling and analysis, together with an interpretation of the results and recommendations where required.

Structure Finite Element Analysis 2

A wide range of element types and analysis formulation methods are available within the FEA software, to allow almost any engineering situation to be modelled. Non-linear analysis enables stresses and displacements in polymeric and hyperelastic materials to be evaluated.

Top

Finite Element Analysis 3 Finite Element Analysis 4

We also commonly utilise FEA ourselves as a design aid in the course of our other engineering works and Design & Build projects, to help predict behaviour of structures under load and to verify hand calculations.

Top

Further Examples of Finite Element Analysis

Damor Engineering Ltd also carries out computer simulations of mechanical events which involve motion, impacts and buckling. Animations can be produced showing the behaviour of components over time under changing load conditions.

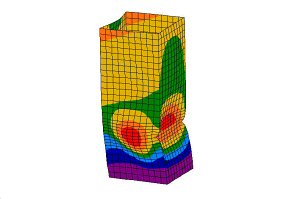

Box Finite Element Analysis 5

Transient effects can be studied, and the software also used to predict natural frequencies of complex structures and components, to help prevent the unwanted effects of resonance during operation.

This type of analysis utilises extensions to the finite element software, and provides a fully integrated solution which enables stress levels and displacements to be computed at each time step of the simulation.

Top

Finite Element Analysis 6Finite Element Analysis 7
